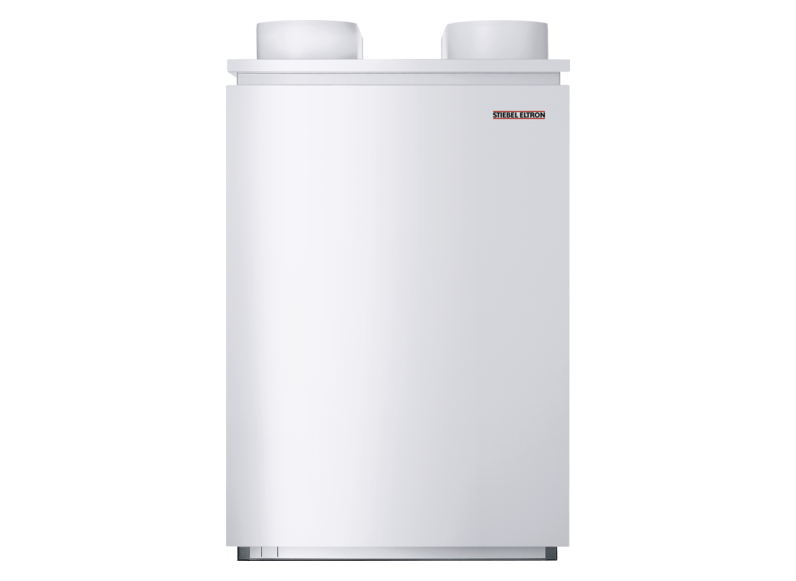

Air source heat pumps

WPL 13 E – Technical Data

Energy efficiency class, heat pump W35

A++

Energy efficiency class, heat pump W55

A+

Energy efficiency class, composite system (heat pump + controller) W35

A++

Energy efficiency class, composite system (heat pump + controller) W55

A+

Heating output at A7/W35 (EN 14511)

8.93 kW

Heating output at A2/W35 (EN 14511)

8.09 kW

Heating output at A-7/W35 (EN 14511)

6.77 kW

COP at A7/W35 (EN 14511)

4.35

COP at A2/W35 (EN 14511)

3.76

COP at A-7/W35 (EN 14511)

3.20

SCOP (EN 14825)

3.85

Sound power level (EN 12102)

64 dB(A)

Sound power level, outdoor installation (EN 12102)

64 dB(A)

Min./max. application limits for heat source

-20...40 °C

Max. application limit on the heating side

60 °C

Height

1116 mm

Width

784 mm

Depth

1182 mm

Weight

205 kg

Rated voltage, compressor

400 V

Rated voltage, emergency/auxiliary heater

400 V

Rated voltage, control unit

230 V

Refrigerant

R407C

Colour

white
