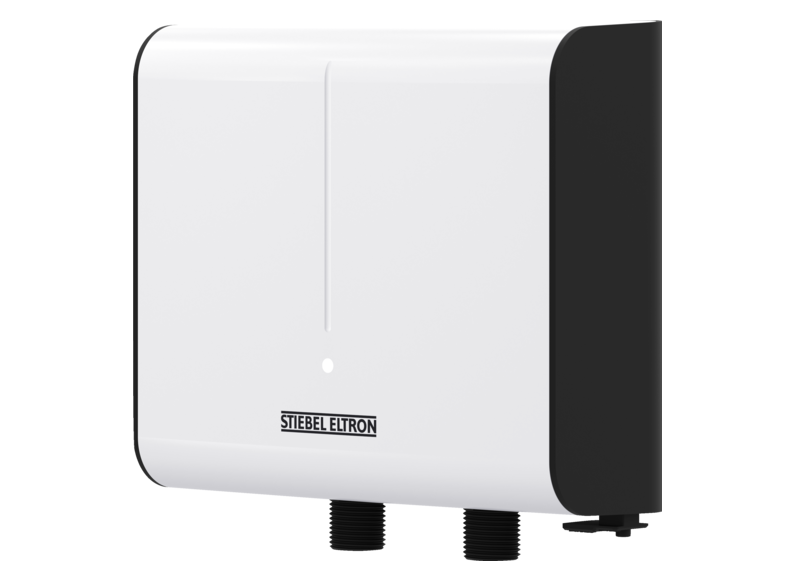

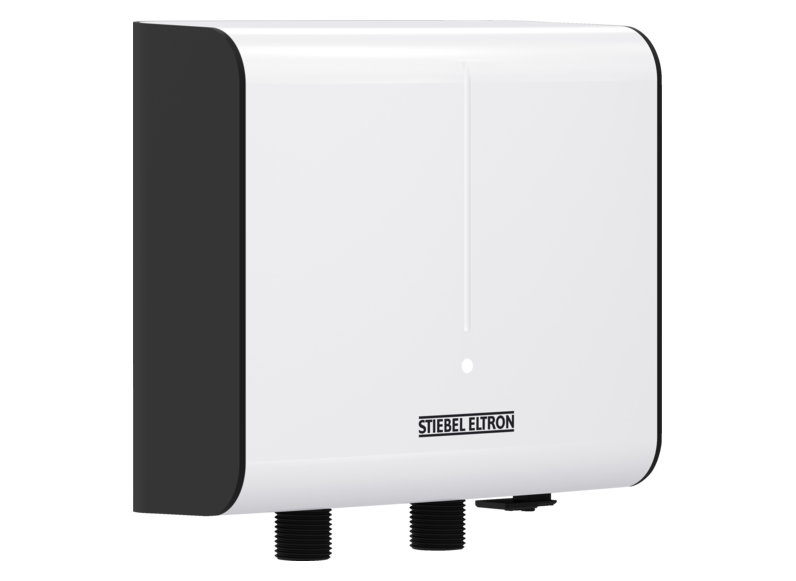

Compact instantaneous water heater

DDP 6 EC (IN)

Application • This electronically controlled instantaneous water heater is suitable for several draw-off points with small to medium DHW quantities, for example for a washbasin and a shower at the same time. • The pressure-tested appliance is combined with high pressure taps. It does not require a drain valve, drain hose or a drip pan.

Convenience features • Compact design for low space requirements. • Supplies several draw-off points with hot water. • Fixed temperature setting.

Installation • A drilling template is supplied for quick and easy installation. • Single-phase power connection.

Safety • The splashproof instantaneous water heater is certified to international standards for maximum electrical safety. To protect against electric shocks, the residual current device (ELCB) switches the appliance off immediately in the event of a harmful leakage current. • The outlet temperature of the water can be limited using the anti-scalding protection with integral thermal cut-out. • The flame-retardant electronic circuit board and pressure-resistant copper tank ensure additional safety and a longer service life. • A durable heating element made of corrosion-resistant copper ensures maintenance-free operation even in chlorinated water.
